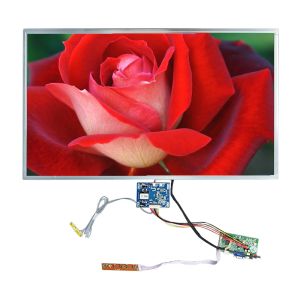

32 Inch High Brightness TFT LCD Panel Display 1920x1080 Resolution with LVDS Interface
The ZH320PIFHD002-02A is a 32-inch high-brightness TFT LCD panel display. It features a 1920×1080 resolution, delivering sharp Full HD visuals and accurate color performance. It remains clearly visible even outdoors, while the integrated LVDS interface enables stable signal transmission.
Designed with practicality at its core, this TFT LCD panel display supports flexible integration. It is suitable for applications including industrial control systems, retail digital signage, medical equipment, and embedded solutions. Its stable performance and highly adaptable design make it a top choice for your needs.
Key Features of the ZH320PIFHD002-02A 32 Inch TFT LCD Panel Display
Full HD 1920x1080 Resolution
Offers clear, detailed visuals, meeting the clarity requirements of industrial medical, and commercial display scenarios.
High Brightness Performance
Ensures excellent visibility in indoor environments with bright ambient Iight avoiding display blur caused by strong light.
LVDS Interface
Enables stable, efficient signal transmission, supporting smooth connection with relevant control systems for reliable operation.
Applications of ZH320PIFHD002-02A32 Inch TFT LCD Panel Display
Industrial control panels and HMI systems
Retail and corporate digital signage
Medical equipment display interfaces
Surveillance and security monitoring displays
Public transportation passenger information display
Product Specification
| Item Number | ZH320PIFHD002-02A |
| Screen Size | 32 Inch |
| Resolution | 1920x1080 |
| Brightness | 500 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 51pins Connector |
| Active Aera | 698.4(W) x 392.85 (H) mm |
| Outline Dimension | 725.23(W)x422.72(H)x14.40(T) mm |
| Operating Temperature | 0℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| HDMI Board
| Optional HDMI Board |
Product Drawing
FQA
Q1: Is this High Brightness LCD Display suitable for continuous 24/7 operation?
A: Yes, the ZH320PIFHD002-02A is designed with industrial-grade durability and stability for continuous operation in demanding environments.
Q2: Can this model be customized with a touch screen?
A: Absolutely. A touch panel can be added as an optional feature, tailored to your B2B or OEM requirements.
Q3: Does it support easy integration into embedded systems?
A: Yes, the LVDS 51-pin interface provides robust connectivity for seamless integration into embedded or custom solutions.
Q4: Can I use this High Brightness LCD Display in a semi-outdoor application?
A: While primarily designed for bright indoor environments, the 500 cd/m² brightness allows usage in semi-outdoor enclosures with proper housing and thermal management.
